CZH-IDP190C-S101
    Publish time 2023-05-30 08:23

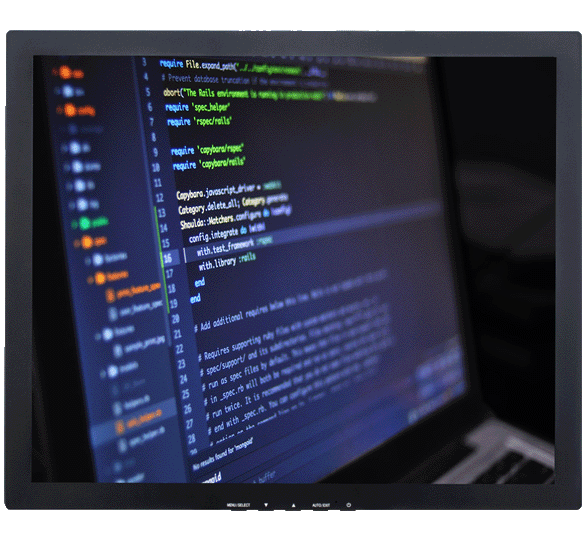

CZH-IDP190C-S101

19” Touch Screen Monitors

  • 19″ Industrial-Grade Touch Screen

  •  5-Wire Resistive Touch  or Surface Capacitive Touch

  • HID Compliant; No Additional Drivers Required

  • Resolution: 1280 x 1024 (SXGA)

  • Auto Re-Start After Power Loss

  • Lockable On-Screen Display Controls

  • Compatible with Automation Direct HMI

  • Can Be Customized to Meet Your Needs

  • 3-Year Warranty

19″ TOUCHSCREEN MONITOR

    The CZH-IDP190C-S101 Series are 19″ touchscreen monitors that offer either 5 wire resistive or surface capacitive touch screen options. The CZH-IDP190C-S101 19” Touch Screen monitors utilize 5-wire resistive touch technology. You may activate the screen via a finger, gloved hand, credit card or stylus. The CZH-IDP190C-S101 utilizes a surface capacitive touch screen. This surface capacitive model can only be activated via an exposed human finger or special-purpose stylus. The image quality is exceptionally clear and bright.  The contact activation point is extremely accurate.  An extensive list of OEM options enables you to customize the CZH-IDP190C-S101 to meet your exact needs. These operate in extreme temperatures of 32° to 140° F.

    Our image quality is exceptionally clear and bright. The contact activation point is extremely accurate. All models in this series feature a USB touch interface.  They offer 1280 x 1024 resolution and a 4:3 aspect ratio.  Additionally, the panels have 350 nits brightness. They are ideal for use with analog cameras, and BNC cameras. Likewise, many legacy machine vision systems benefit. Furthermore, we build them with true industrial-grade components for long-term reliability.

RUGGED INDUSTRIAL TOUCHSCREEN

    This series receives our exclusive Creternal-Tuff treatment. Moreover, the Creternal-Tuff process includes RTV silicone on all connections and critical components.  Additionally, all wires are dressed, tie-wrapped and secured. Lastly,  we apply ThreadLock to all screws to ensure they remain secured. Most importantly, this results in a rugged, dependable monitor you can rely on. They can operate on 12 VDC (90-240 VAC with Included Power Brick) or 12-24VDC. The operating temperature ranges are extreme.

TOUCH SCREENS FOR DEMANDING APPLICATIONS

    The CZH-IDP190C-S101 Series also provide a brighter-than-normal, with 350 nits brightness. The result is crisp, vibrant video images.Creternal-Tech industrial LCD monitors are specifically designed for use in demanding industrial, commercial,  and A/V applications. For instance, every Creternal-Tech  monitor utilizes industrial-grade components and high-end LCD panels not found in retail or consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.

    The CZH-IDP190C-S101 Series industrial 19″ LCD touch screens offer a variety of video inputs and are available in standard, open frame, rack mount, panel mount, NEMA/IP waterproof, and touch screen configurations. An extensive list of available OEM options enables you to customize a solution to your specific needs.  They can also be private-labeled with your company name and/or logo on the front bezel.

MONITOR DESIGNED FOR 24/7/365 OPERATION

  The CZH-IDP190C-S101 displays are designed to operate 24/7/365 and are backed by our full 3-Year Warranty. This series of monitors are ideal for industrial, oil & gas sectors,military, food & beverage, machine vision systems, museums, surveillance, and simulator applications.

OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST 19 INCH LCD DISPLAY

    With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you to filter by features important to you. You may filter by product attributes such as brightness, waterproof, panel mount, touch screen, resolution, etc. View all large industrial monitors and touch screens.  Creternal-Tech can provide modified or Custom OEM LCD Displays.  Private Label Monitors are also an option if you have very specific requirements.

    Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs.  We will help provide crystal-clear images for your projects.  Email fae@creternal-tech.com today to Contact with one of our specialists.  Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 19′′ industrial grade monitor you receive will be and do everything you had hoped it would!

SPECIFICATIONS

LCD PANEL

19” TFT Color LCD

TOUCH SCREEN TYPE

5-Wire Resistive Touch

Surface Capacitive Touch

TOUCH SCREEN

USB

RESOLUTION

1280 x 1024 (SXGA)

VIEWABLE AREA

14.81” (W) x 11.85” (H) (376.17 x 300.98mm)

PIXEL PITCH

0.294 mm x 0.294 mm

DISPLAY COLORS

16.7M

ASPECT RATIO

4:3 (5:4)

BRIGHTNESS

350 nits

CONTRAST RATIO

1,000:1

VIEWING ANGLE

170° (H) x 160° (V)

RESPONSE TIME

5 msec (TrF)

CONTROL

OSD (On-Screen Display) via Front Panel Pushbuttons (may be locked)

VIDEO INPUTS

HDMI, DVI, DisplayPort

VGA & DVI-D

POWER REQUIREMENT

24 VDC (2.5mm Locking Connector)

12 VDC (90-240 VAC with Included Power Brick)

POWER CONSUMPTION

28 W

ENCLOSURE

ABS

MOUNTING

75 x 75mm Rear VESA Hole Pattern (Optional Base)

OPERATING

32° to 140° F (0° to 60° C)

HUMIDITY

5-90% RH

SHOCK/VIBRATION

50 G (20 msec, 1/2 sine) / 1.5 G RMS 10-300Hz

APPROVALS

UL/cUL, FCC, CE, TUV, RoHS

UL, CE & FCC

DIMENSIONS

16.75” (W) x 14.83” (H) x 1.95” (D) (425.45 x 376.68 x 49.52 mm)

WEIGHT

11.4 lbs. (5.17 kg)

12.5 lbs. (5.67 kg)

Specifications subject to change without notice.
