CZH-IDP238C-A101
    Publish time 2023-05-29 12:47

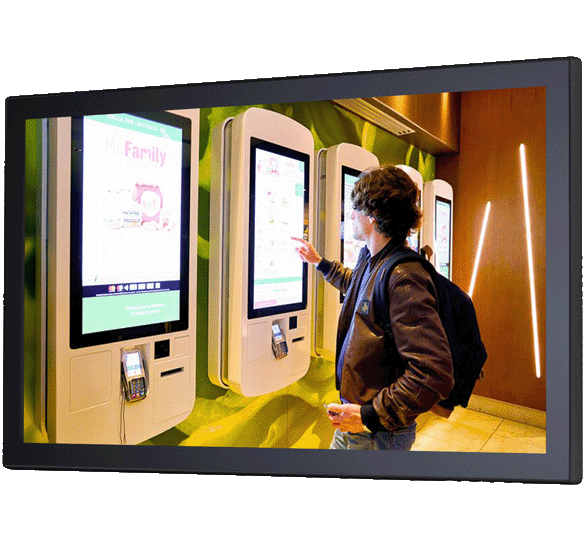

CZH-IDP238C-A101

23.8 P-Cap Touch Screen Monitor

  • 23.8” P-Cap Touch Screen

  • 1920 x 1080 Full HD Resolution

  • Zero-Bezel Enclosure; Seamless, All-Glass Front

  • IP65 Water Resistant Front Face

  • Built-In Speakers

  • Auto Re-Start After Power Loss

  • 3-Year Warranty


23.8″ TOUCH SCREEN WITH OPTIMAL IMAGE QUALITY

    Our widescreen 23.8″ P-Cap touch screen monitor provides 1080p, 1920 x 1080 Full HD resolution. The super-wide 178° x 178° viewing angles ensures clear, sharp images when viewed from nearly any angle. Thanks to its high resolution, brightness and high contrast ratio, our 23.8″ touch screen provides razor-sharp, flicker free images.  Additionally, the zero-bezel enclosure is stylish as well as functional with a 16:9 aspect ratio.

 P-CAP TOUCH SCREEN

    The projected capacitive touch technology enables multi-touch. This allows up to 10 simultaneous touch points. The P-Cap touch screen can be activated via exposed fingers, or with a surgical glove. Most importantly, the screen is unaffected by dirt, grease or moisture on the glass surface. To help you guide you through the advantages of the 5 most common types of touch technology, see our tutorial on touch screen basicsOur convenient touch screen comparison chart will provide a quick overview of advantages and disadvantages of each type.

23.8″ BEZEL LESS MONITOR, FULL FLAT DESIGN

    Our zero-bezel ABS enclosure features a single pane of glass across the entire front face of its 23.8″ touch screen. Due to the absence of any raised-edge bezel (frame) around the front edges, this touch screen is extremely easy to clean.This improves overall hygiene. The bezel-less monitor enclosure eliminates the build-up of germs and contamination. There is no bezel for them to reside beneath, as with standard enclosures. The rounded corners of the housing add a measure of comfort and safety, as well as improved aesthetics.

    This lightweight display features rear VESA mount holes which enables easy mounting on spring arms, wall mount brackets or tabletop stands.  Visit our wide range of LCD monitor mounts and stands to complete your installation. Rear speakers are standard and can provide useful tones or alarms.  Our exclusive CreternalTuff  treatment ensures maximum shock and vibration resistance.

FAN-LESS TOUCH SCREEN MONITOR

    Built without internal fans, our fan-less design provides numerous important benefits. Reliability and durability are greatly increased, since one major moving part, the fan, which is subject to mechanical failure, is eliminated. A fan-less design also provides a higher level of safety in sterile environments.  It eliminates the circulation of pathogens and dust. Lastly, a fan-less monitor is also quieter.  The CZH-IDP238C-A101 touch screens are ideal for demanding industrial, commercial and medical applications.

OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST 23 INCH LCD DISPLAY

    With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you to filter by features important to you. You may filter by product attributes such as brightness, waterproof, panel mount, touch screen, resolution, etc. View all large industrial monitors and touch screens.  Creternal-Tech can provide modified or Custom OEM LCD Displays.  Private Label Monitors are also an option if you have very specific requirements.

    Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs.  We will help provide crystal-clear images for your projects.  Email fae@creternal-tech.com today to Contact with one of our specialists.  Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 23′′ industrial grade monitor you receive will be and do everything you had hoped it would!


SPECIFICATIONS

LCD PANEL

23.8” Color LCD; LED Backlights

TOUCH SCREEN TYPE

Projected Capacitive, 10 Simultaneous Touch Points

TOUCH INTERFACE

USB

RESOLUTION

1920 x 1080 (1080p/60)

VIEWABLE AREA

20.75" x 11.67" (527.2 x 296.46 mm)

PIXEL PITCH

0.2745 mm

DISPLAY COLORS

16.7M

ASPECT RATIO

16:9

BRIGHTNESS

250 nits

CONTRAST RATIO

3,000:1

VIEWING ANGLE

178° (H) x 178° (W)

RESPONSE TIME

14 msec Grey to Grey

CONTROL

OSD (On-Screen Display) via Rear Panel Pushbuttons

VIDEO INPUTS

VGA, HDMI, DisplayPort

AUDIO

Dual Rear Speakers

POWER REQUIREMENT

12 VDC/90-240VAC with Internal power adapter

POWER CONSUMPTION

25W

ENCLOSURE

Zero-Bezel Front; Black ABS Rear

ENCLOSURE IP RATING

Front: IP65 Rear: IP30

MOUNTING

100mm x 100mm / 100mm x 200mm Rear VESA Holes; Optional Tabletop Base

OPERATING TEMP

32˚ to 122˚F (0 to 50˚C)

HUMIDITY

5-90% RH

SHOCK/VIBRATION

50G Half-sine 20 msec ; 1.5G 10-200 Hz

DIMENSIONS

22.71 (W) x 13.58" (H) x 2.43 (D) (576.9 x 345.1 x 61.7 mm)

WEIGHT

13.6 lbs (6.16 kg)

WARRANTY

3 Years

Specifications subject to change without notice.
