CZH-IDP240C-A101
    Publish time 2023-05-29 12:36
CZH-IDP240C-A101

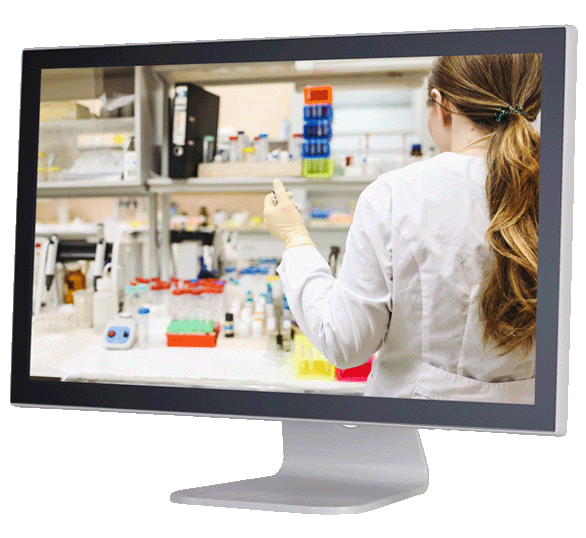

24" P-Cap Touch Screen Monitor

  • 24” P-Cap Touch Screen Monitors

  • Projected Capacitive Touch Screen with 10 simultaneous touch points

  • Zero-Bezel Design; All-Glass Front Simplifies Cleaning

  • Full HD Resolution: 1920 x 1080

  • VGA, HDMI, DVI and DisplayPort Video Inputs

  • Built-In Speakers and Auto Re-Start After Power Loss

  • 3 Year Warranty

OPTIMAL IMAGE QUALITY

    Our widescreen 24″ touch screen monitor provides 1080p, 1920 x 1080 Full HD resolution. The super-wide 178 x 178 viewing angles ensures clear, sharp images when viewed from nearly any angle. Thanks to its high resolution, brightness and high contrast ratio, our 24″ projected capacitive touch screen provides razor-sharp, flicker free images.  Fast response time and lag-free transmission of images ensure the most detailed images today. Our medical touch panel has an aspect ratio of 16:9.

24″ P-CAP TOUCH PANEL

    The projected capacitive touch technology enables multi-touch, with up to 10 simultaneous touch points. For instance, the P-Cap touch screen can be activated via exposed fingers, or with a surgical glove. The screen is unaffected by dirt, grease or moisture on the glass surface.

BEZEL LESS MONITOR, FULLY FLAT DESIGN

    Our zero-bezel ABS enclosure features a single pane of glass across the entire front face of its 24″ p-cap touch screen. Due to the absence of any raised-edge bezel (frame) around the front edges, this touch screen is extremely easy to clean and improves overall hygiene. For example, the bezel-less monitor enclosure eliminates the build-up of germs and contamination, as there is no bezel for them to reside beneath, as with standard enclosures. Also,  the rounded corners of the housing add a measure of comfort and safety, as well as improved aesthetics.

    This lightweight medical touch panel display features rear VESA mount holes which enables easy mounting via spring arms, surgical booms or tabletop stands. Visit our wide range of LCD monitor mounts and stands to complete your installation.  Rear speakers are standard and can provide useful tones or alarms.

FANLESS INDUSTRIAL TOUCHSCREENS

    These are built without internal fans. A fan-less design provides numerous important benefits. Reliability and durability are greatly increased, since one major moving part, the fan, which is subject to mechanical failure, is eliminated. A fan-less design also provides a higher level of safety in sterile environments, as it eliminates the circulation of pathogens and dust. Lastly, a fan-less monitor is also quieter for a medical touch panel.

OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST 24 INCH LCD DISPLAY

    With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you to filter by features important to you. You may filter by product attributes such as brightness, waterproof, panel mount, touch screen, resolution, etc. View all large industrial monitors and touch screens.  Creternal-Tech can provide modified or Custom OEM LCD Displays.  Private Label Monitors are also an option if you have very specific requirements.

    Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs.  We will help provide crystal-clear images for your projects.  Email fae@creternal-tech.com today to Contact with one of our specialists.  Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 24′′ industrial grade monitor you receive will be and do everything you had hoped it would!

SPECIFICATIONS

LCD PANEL

24” Color LCD; LED Backlights

TOUCH SCREEN

Projected Capacitive

TOUCH

USB

RESOLUTION

1920 x 1080 (Full HD)

VIEWABLE AREA

20.92” x 11.77”

(531.4 x 298.9 mm)

PIXEL PITCH

0.248mm

DISPLAY COLORS

16.7 Million

ASPECT RATIO

16:9

BRIGHTNESS

300 nits

CONTRAST RATIO

5,000:1

VIEWING ANGLE

178° (H) x 178° (V)

RESPONSE

12 msec

25 msec Trf

CONTROL

OSD (On-Screen Display) Buttons

VIDEO INPUTS

VGA, HDMI, DisplayPort

VGA & DVI-D

AUDIO

Dual Rear Speakers

POWER REQUIREMENT

100-240 VAC, 50/60 Hz with
Internal Medical-Grade Power Supply and Green-Dot Power Cord

POWER

38W

PLUG & PLAY

DDC 1/2B

ENCLOSURE

ABS: Zero-Bezel Design

ENCLOSURE IP RATING

Front: IP65 Rear: IP30

MOUNTING

Included Tabletop Base or 100x100mm/ 200x100 Rear VESA Mount Holes

OPERATING
TEMPERATURE

32° to 122° F (0° to 50° C)

HUMIDITY

5-90% RH

SHOCK/

50G (20 msec, 1/2 sine); 1.5G RMS 10-200HZ, 30 minutes each (X,Y,Z)

DIMENSIONS

22.6” (W) x 13.5” (H) x 2.4” (D)

(576.14 x 344.34 x 62.10 mm)

WEIGHT

13.2 lbs.

(5.98 kg)

WARRANTY

3 Years
