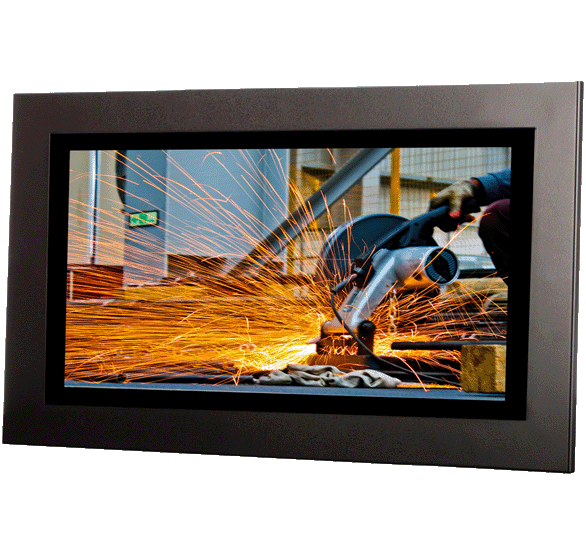

Creternal-Tech 18.5″ 5-projected capacitive touchscreen monitors are built for demanding environments and applications. The steel rear-clamp design will ensure rock-solid installation in cabinets, walls, desks and more. There’s also a handy guide on how to install a panel-mount touchscreen. For use in direct sunlight, we recommend oursunlight readablemonitors for higher brightness.
EXTREME OPERATING TEMPERATURE TOUCH SCREENS
We design the CZH-IDP185C-B102 touch monitors to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these displays will survive and thrive. To clarify, they will operate in temperatures down to -4°F (-20°C). They will also withstand brutal heat. Operating temperatures go up to 158°F (70°C). The rugged steel enclosure assures these 18.5” panel-mount touchscreen will provide years of reliable imaging performance. Specifically, typicalMTBFfor these monitors is 50,000 hours.
MAXIMUM RESISTANCE TO SHOCK AND VIBRATION
The CZH-IDP185C-B102 18.5” displayport monitor also features Creternal-Tech'sexclusive Creternal-tuff treatment, which ensures maximum resistance to shock and vibration. The Creternal-tuff process includes RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged steel enclosure, ensures the CZH-IDP185C-B102 Series will provide years of reliable service.
OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST 18.5 INCH LCD DISPLAY
With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out ourAdvanced Search Tool. This enables you to filter by features important to you. You may filter by product attributes such as brightness, waterproof, panel mount, touch screen, resolution, etc. View all large industrial monitors and touch screens. Creternal-Tech can provide modified or Custom OEM LCD Displays.Private Label Monitors are also an option if you have very specific requirements.
Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs. We will help provide crystal-clear images for your projects. Email fae@creternal-tech.com today to Contact with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 18.5′′ industrial grade monitor you receive will be and do everything you had hoped it would!
SPECIFICATIONS
LCD PANEL
18.5” Color AHVA Panel; LED Backlights
TOUCH SCREEN
Projected Capacitive
TOUCH INTERFACE
USB
RESOLUTION
1920 x 1080 (Full HD)
VIEWABLE AREA
16:13” (W) x 9.07” (H)” (409.8 x 230.4 mm)
PIXEL PITCH
0.213
DISPLAY COLORS
16.7 M
ASPECT RATIO
16:9
BRIGHTNESS
350 nits
CONTRAST RATIO
1,000:1
RESPONSE TIME
25 msec Trf
VIEWING ANGLE
178° (H) x 178° (W)
CONTROL
OSD (On-Screen Display) via Pushbuttons (Lockable)
