CZH-PPC156-T101
    Publish time 2023-05-29 15:37

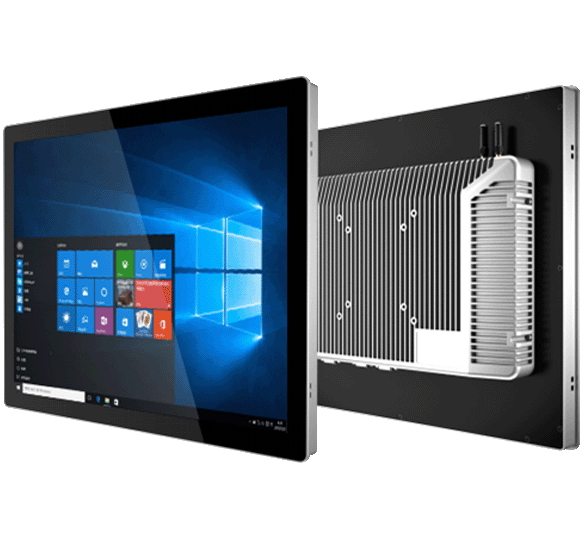

CZH-PPC156-T101

15.6" Industry Panel PC

  • 15.6” P-Cap Touch Screen

  • 1920 x 1080 Full HD Resolution

  • Zero-Bezel Enclosure; Seamless, All-Glass Front

  • IP65 Water Resistant Front Face

  • Built-In Speakers

  • Auto Re-Start After Power Loss

  • 3-Year Warranty

15.6″ TOUCH SCREEN WITH OPTIMAL IMAGE QUALITY

    Our widescreen 15.6″ P-Cap touch screen monitor provides 1080p, 1920 x 1080 Full HD resolution. The super-wide 178° x 178° viewing angles ensures clear, sharp images when viewed from nearly any angle. Thanks to its high resolution, brightness and high contrast ratio, our 15.6″ touch screen provides razor-sharp, flicker free images.  Additionally, the zero-bezel enclosure is stylish as well as functional with a 16:9 aspect ratio.

 P-CAP TOUCH SCREEN

    The projected capacitive touch technology enables multi-touch. This allows up to 10 simultaneous touch points. The P-Cap touch screen can be activated via exposed fingers, or with a surgical glove. Most importantly, the screen is unaffected by dirt, grease or moisture on the glass surface. To help you guide you through the advantages of the 5 most common types of touch technology, see our tutorial on touch screen basicsOur convenient touch screen comparison chart will provide a quick overview of advantages and disadvantages of each type.

FAN-LESS TOUCH SCREEN panel pc

    Built without internal fans, our fan-less design provides numerous important benefits. Reliability and durability are greatly increased, since one major moving part, the fan, which is subject to mechanical failure, is eliminated. A fan-less design also provides a higher level of safety in sterile environments.  It eliminates the circulation of pathogens and dust. Lastly, a fan-less monitor is also quieter.  The CZH-PPC156-T101 Industry Panel Pcs are ideal for demanding industrial, commercial and medical applications.

Panel pc DESIGNED FOR 24/7/365 OPERATION

  The CZH-PPC156-T101 displays are designed to operate 24/7/365 and are backed by our full 3-Year Warranty. This series of monitors are ideal for industrial, oil & gas sectors,military, food & beverage, machine vision systems, museums, surveillance, and simulator applications.

SPECIFICATIONS


LCD PANEL

15.6” Color LCD; LED Backlights

TOUCH SCREEN TYPE

Projected Capacitive, 10 Simultaneous Touch Points

TOUCH INTERFACE

USB

RESOLUTION

1920 x 1080 (1080p/60)

CPU

Intel® Celeron® Processor J1900

Intel® Core™ i5-4300U

Intel® Core™ i5-7200U

mEMORY

4G DDR3L 1333MHz

SSD

64G SSD(128G/256G/512G)

VIDEO

Intel® HD Graphics

LAN

Realtek RTL8111F

wifi

WIFI AND BT

IO

LAN *1 / COM *2 /USB *4 / VGA *1 / LINE OUT *1 / MIC*1

BRIGHTNESS

300 nits

viewing angle

178° (H) x 178° (W)

response time

14 msec Grey to Grey

AUDIO

Dual Rear Speakers

POWER REQUIREMENT

12 VDC/90-240VAC with Internal power adapter

POWER CONSUMPTION

50W

ENCLOSURE

Zero-Bezel Front; Black ABS Rear

ENCLOSURE IP RATING

Front: IP65 Rear: IP30

MOUNTING

100mm x 100mm / 100mm x 200mm Rear VESA Holes; Optional Tabletop Base

OPERATING TEMP

32˚ to 122˚F (0 to 50˚C)

HUMIDITY

5-90% RH

SHOCK/VIBRATION

50G Half-sine 20 msec ; 1.5G 10-200 Hz

DIMENSIONS

 (385.6.6.9 x 242.6 x 55.8 mm)

WEIGHT

(4.16 kg)

WARRANTY

3 Years

Specifications subject to change without notice.
