CZH-IDP320-S101
    Publish time 2023-05-29 11:56

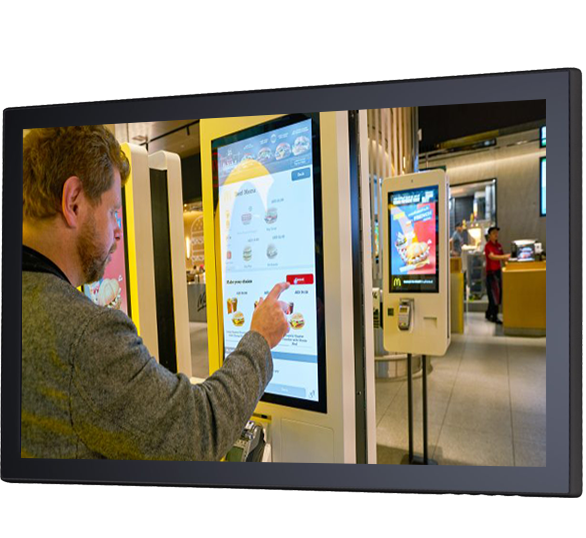

CZH-IDP320-S101

32” Sunlight Readable Touch Screen Monitor

  • Produces Clear, Sharp Images Even in Bright Sunlight with 1,500 nits Brightness

  • Projected Capacitive Touch Screen (10-Point)

  • Zero-Bezel, All Glass Front

  • Internal Speakers

  • Auto Re-Start After Power Loss

  • Lockable On-Screen Display Controls

  • 3-Year Warranty

32″ SUNLIGHT READABLE TOUCHSCREEN – FRAMELESS

    The CZH-IDP320-S101 are 32″ Sunlight Readable Touchscreen high brightness monitors.  They feature at least 1500 nits brightness and a widescreen 16:9 aspect ratio.    We design the CZH-IDP320-S101 sunlight readable frameless monitor for use in direct sunlight with FULL HD resolution.  Consequently, they are also perfect for other high ambient-light conditions.  They utilize state-of-the-art LED backlights. The models in this series produce at least 1,000 nits brightness.  In contrast, this is over 3 to 5 times brighter than standard monitors.  For example, standard monitors are only 200-300 nits brightness.  Therefore, the result is an amazingly bright screen.  This will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen.

RUGGED INDUSTRIAL TOUCH SCREEN DISPLAYS

    The CZH-IDP320-S101 sunlight readable frameless monitor touch screens are extremely rugged.  For instance, we build them with true industrial-grade components.  Furthermore, they receive our exclusive Creternal-Tuff treatment. The Creternal-Tuff process includes RTV silicone on all connections and critical components.  Additionally, all wires are dressed, tie-wrapped and secured.  Lastly,  we apply ThreadLock to all screws.  The bezel-less steel  enclosure will ensure shock and vibration resistance for this rugged 1000 nits brightness zero bezel monitor.  Projected Capacitive (P-Cap) technology offers advantages.  In addition to a bare finger, it can also be activated with surgical gloves or thin cotton gloves. Secondly, P-Cap enables multi-touch activation (simultaneous input from two or more fingers).  This is a 10 point touch panel.

SUNLIGHT BEZEL LESS TOUCHSCREENS WITH EXTENDED OPERATING TEMPERATURES

    We design the CZH-IDP320-S101 32″ Sunlight Readable Touchscreen to operate in nearly any environmental conditions.  Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, these monitors will operate in temperatures down to 32°F (0°C).  They will also withstand brutal heat, with operating  temperatures up to 140°F (+60°C).  The steel. bezel less enclosure assures the 32″ sunlight readable frameless monitor will provide years of reliable imaging performance.  Specifically, typical MTBF for these monitors is 50,000 hours.

HIGH BRIGHTNESS TOUCH SCREENS DEPLOYED WORLDWIDE

    Our 32″ Sunlight Readable Touchscreens have been deployed in a wide range of demanding industries. For example, military, law enforcement,  industrial manufacturing, aviation and entertainment benefit. They are also found in inspection, kiosks,  heavy equipment, and transportation.  Creternal-Tech monitors are backed by our full 3-Year Warranty.  This ensures you of many years of reliable service.

    We specialize in providing Sunlight Readable monitors and touch-screens for challenging environments. However demanding your application may be, we will provide the very best solution.  Our vast client base shows our versatility in providing the very best Sunlight Readable Monitors in the industry.

OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST 32 INCH LCD DISPLAY

    With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you to filter by features important to you. You may filter by product attributes such as brightness, waterproof, panel mount, touch screen, resolution, etc. View all large industrial monitors and touch screens.  Creternal-Tech can provide modified or Custom OEM LCD Displays.  Private Label Monitors are also an option if you have very specific requirements.

    Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs.  We will help provide crystal-clear images for your projects.  Email fae@creternal-tech.com today to Contact with one of our specialists.  Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 32′′ industrial grade monitor you receive will be and do everything you had hoped it would!


SPECIFICATIONS

LCD PANEL

32” Color MVA LCD; LED Backlights

TOUCH SCREEN TYPE

Projected Capacitive (Up to 10 simultaneous Touch Points)

TOUCH INTERFACE

USB

RESOLUTION

1920 x 1080 (Full HD)

VIEWABLE AREA

27.5” (W) x 15.46” (H) (698.4 x 392.85mm)

PIXEL PITCH

0.3637mm

DISPLAY COLORS

16.7 Million

ASPECT RATIO

16:9 Widescreen

BRIGHTNESS

1,500 nits

CONTRAST RATIO

3,000:1

VIEWING ANGLE

178° (H) x 178° (V)

RESPONSE TIME

8 msec (G-G)

CONTROL

OSD (On-Screen Display) Via Front Buttons

VIDEO INPUTS

VGA, HDMI, DisplayPort

AUDIO

Dual Rear Speakers

POWER REQUIREMENT

12VDC (2.5mm Barrel Plug); 90-240VAC via Included Power Brick

POWER CONSUMPTION

100 W

ENCLOSURE

Zero-Bezel Front; Steel Enclosure

ENCLOSURE IP RATING

Front: IP65 Rear: IP30

MOUNTING

100 x 100mm / 200 x 400mm Rear VESA Mount Holes

OPERATING TEMPERATURE

32° to +140° F (0° to 60° C)

HUMIDITY

5-90% RH

SHOCK

50 G Half-sine

VIBRATION

1.5 G RMS 10-200 Hz

DIMENSIONS

TBD

WEIGHT

TBD

WARRANTY

3-Years

Specifications subject to change without notice.
