CZH-IDP750N-S500
    Publish time 2023-05-14 16:49

● 4K Resolution: 3840 x 2160 (UHD)

● Rugged, Water- Resistant Enclosure (IP 54)

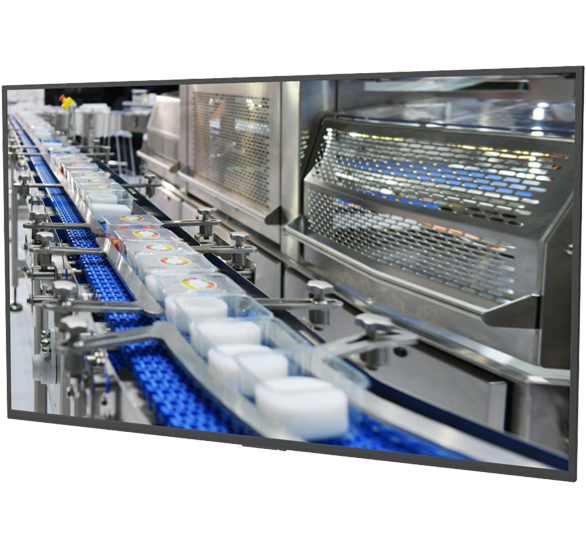

CZH-IDP750N-S500

OUTDOOR 75" MONITOR

  • 4K Resolution: 3840 x 2160 (UHD)

  • Rugged, Water- Resistant Enclosure (IP 54)

  • Daylight Viewable, Indirect Sunlight (500 Nits)

  • Wide Viewing Angle: 178° x 178°

  • Internal Speakers

  • Includes Outdoor-Rated Tilting Wall-Mount Bracket

  • Maintenance-Free Design; No Need to Ever Change Filters

4K OUTDOOR 75″ MONITOR

   The CZH-IDP750N-S500 Outdoor 75″ monitor offers a unique combination of features and capabilities, making it the ideal solution for situations requiring mid range performance in terms of screen brightness and protection from liquids.   With 500 nits brightness, the CZH-IDP750N-S500 offers 2X brightness of a standard monitor or TV.  It is ideal for general daylight, under awnings or shade, or inside very bright industrial facilities.  (For use in direct, bright sunlight, please refer to our SRM and SXOBH Sunlight Readable monitor solutions, with 1,000-2,500 nits brightness)  The internal IPS panel features 4K resolution, and provides outstanding color and video quality from any viewing angle.

   The rugged aluminum enclosure is rated IP54. This provides protection against water splashing / spraying from all directions.  This makes the CZH-IDP750-CS500 ideal for use outdoors under a canopy, tent or roof, where it may occasionally encounter rain, or in factories with incidental overspray.  For true industrial wash-down with water jets, please see our other IP-rated models.

OUTDOOR 4K TV MONITOR WITH EXTREME OPERATING TEMPERATURES

   The CZH-IDP750N-S500 outdoor 4K 75″ displays are designed to operate in a wide range of environmental conditions.  Whether in frigid temperatures or blazing heat, these displays will survive and thrive.  To clarify, these outdoor monitors will operate in temperatures down to -21°F (-30°C).  They will also withstand brutal heat, with operation temperatures up to +122°F (+50°C).

Creternal-Tech IS READY TO HELP YOU FIND THE BEST WEATHER PROOF OUTDOOR MONITOR

   With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you to filter by your own specific search requirements.  View our full line of 21.5-65″ monitors or filter monitors by standard brightness models only.  Creternal-Tech can provide modified or Custom OEM LCD Displays.  Private Label Monitors are also an option if you have very specific requirements.  We also offer our 21.5″ monitors/ touch screens as Medical Grade Display solutions.

   Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs.  We will help provide crystal-clear images for your projects.  Email fae@creternal-tech.com today to Contact with one of our specialists.  Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 75′′ industrial grade monitor you receive will be and do everything you had hoped it would!

   If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.

SPECIFICATIONS

PANEL TYPE

IPS

DISPLAY RESOLUTION

3840 x 2160 (4K - UHD)

VIEWABLE AREA

65.58” H x 37.19” V (1665.65 x 944.73)

PIXEL PITCH

.429mm x .429mm

DISPLAY COLORS

10 Bit (1.07 Billion Colors)

ASPECT RATIO

16:9

HIGH DYNAMIC RANGE

HDR10

BRIGHTNESS

500 nits

CONTRAST RATIO

1200:1

VIEWING ANGLE

178° (H) x 178° (W)

ORIENTATION

Landscape

RESPONSE TIME

8ms

REFRESH RATE

60 Hz

IPS PANEL RATING

30,000 Hours

INTERNAL SPEAKERS

Standard; Downward-Facing

TV FORMATS

2160p, 1080p, 1080i, 720p, 480p, 480i

TV INPUT

Coax, 75 ohm (x1) NTSC, ATSC, 64-QAM, 256-QAM

HDMI INPUT

HDMI (x3) (HDMI 1.4 / 2.0 with HDCP 1.4 / 2.2) (ARC on HDMI1)

CVBS INPUT

RCA (x1)

YPBPR INPUT

RCA (x1)

IR REPEATER

3.5mm Mono Jack (x1)

ANALOG AUDIO INPUT

RCA (x1)

ANALOG AUDIO OUTPUT

3.5mm Stereo Jack (x1)

USB 2.0

USB A (x2)

RS232

9pin D-sub (x1)

AUDIO OUTPUT

2x8W

POWER REQUIREMENT

100 VAC to 240 VAC, 50 to 60 Hz

POWER CONSUMPTION

Maximum: 265W, Standby:<0.5W

ENCLOSURE

Rugged Aluminum, Black

ENCLOSURE RATING

IP54

MOUNTING

Via 400 x 200mm VESA holes, or Included Outdoor Tilting Wall Mount Bracket

SAFETY/EMC

FCC Class B

OPERATING TEMPERATURE

-22°F to 122°F (-30°C t0 50°C)

DIMENSIONS

66.29" (W) x 38.18" (H) x 4.01" (D) (1684 x 970 x 102mm)

WEIGHT

81.6lb (37.01kg)

SHIPPING DIMENSIONS

71.96" x 44.01" x 11.22" (1828 x 1118 x 285mm)

SHIPPING WEIGHT

116.5lb (52.84kg)

TAA COMPLIANT

Yes

WARRANTY

1 Year

PACKAGE CONTENTS

Display, Outdoor IR Learning Remote, Manual,
Outdoor Tilting TV Wall Mount, IR Emitter, 3x Cable Ties

Specifications subject to change without notice.
