CZH-IDP320C-S101
    Publish time 2023-05-14 16:06

● 32” HD Color LCD Monitor

● Full HD Resolution: 1920 x 1080 (1080p/60)

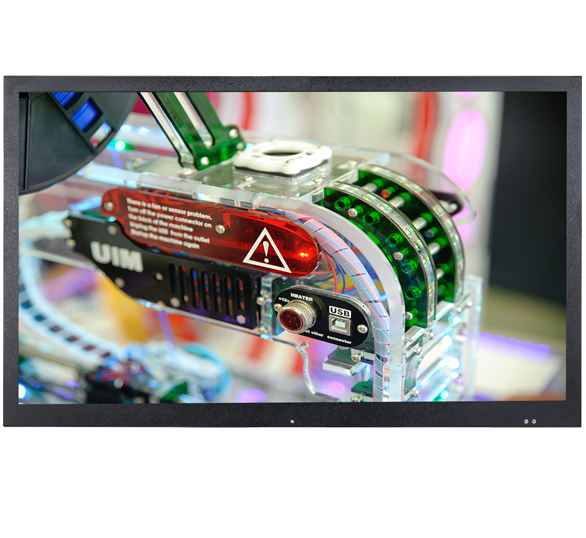

CZH-IDP320C-S101

32” Customizable Industrial HD LCD Monitor

  • 32” HD Color LCD Monitor

  • Full HD Resolution: 1920 x 1080 (1080p/60)

  • Video Inputs: VGA, HDMI, HD-SDI Composite (BNC Loop-Thru), NTSC PAL

  • Steel Enclosure

  • 12 VDC Output

  • Dual Voltage: 24VDC & 100-240 VAC

  • Auto Re-Start After Power Loss

  • Can Be Customized to Meet Your Needs

INDUSTRIAL-GRADE 32 INCH MONITOR

   The CZH-IDP320C-S101 is a 32 inch monitor.  These industrial-grade LCD monitors offer brilliant color and superb image quality while providing the reliability and rugged performance required by demanding applications.  They offer full HD resolution: 1920 x 1080 (1080p/60).  It is a 16:9 aspect ratio display series. The CZH-IDP320C-S101 monitors offer VGA, HDMI, DisplayPort, and Composite (BNC) analog and digital video input capabilities, as well as dual audio speakers.  An extensive list of available OEM options enables you to customize the CZH-IDP320C-S101 to your specific needs.   It is available in a standard enclosure, open frame or touch screen configurations.  For longer transmission distances, the CZH-IDP320C-S101 features an HD-SDI input.  It can be mounted via rear VESA holes, or an optional tabletop base.

MONITOR WITH MAXIMUM RESISTANCE TO SHOCK AND VIBRATION

   The CZH-IDP320C-S101  32” LCD also features Creternal-Tech’s exclusive Creternal-Tuff treatment, which ensures maximum resistance to shock and vibration. The Creternal-Tuff process includes RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged steel enclosure, ensures the CZH-IDP320-CS01 Series will provide years of reliable service. Every Creternal-Tech monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors.

MONITOR DESIGNED FOR 24/7/365 OPERATION

   The CZH-IDP320-CS01 displays are designed to operate 24/7/365 and are backed by our full 3-Year Warranty. This series of monitors are ideal for industrial, military, food & beverage, machine vision systems, museums, surveillance, and simulator applications. View all of our standard brightness industrial monitors for indoor operation.

OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST 32 INCH LCD DISPLAY

   With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you to filter by features important to you. You may filter by product attributes such as brightness, waterproof, panel mount, touch screen, resolution, etc. View all large industrial monitors and touch screens.  Creternal-Tech can provide modified or Custom OEM LCD Displays.  Private Label Monitors are also an option if you have very specific requirements.

   Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs.  We will help provide crystal-clear images for your projects.  Email fae@creternal-tech.com today to Contact with one of our specialists.  Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 21.5′′ industrial grade monitor you receive will be and do everything you had hoped it would!

If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.

SPECIFICATIONS

LCD PANEL

32” TFT Color MVA-Type; LED Backlights

DISPLAY RESOLUTION

1920 x 1080 (Full HD)

VIEWABLE AREA

27.48” (W) x 15.46” (H) (698.4 x 392.9 mm)

PIXEL PITCH

0.364mm X 0.364mm

DISPLAY COLORS

16.7 Million

ASPECT RATIO

16:9

BRIGHTNESS

400 nits

CONTRAST RATIO

3,000:1

VIEWING ANGLE

178° (H) x 178° (V)

RESPONSE TIME

6.5 msec

CONTROL

OSD (On-Screen Display) via Rear Panel Pushbuttons or Remote Control

INPUTS

VGA, HDMI, HD-SDI, Composite BNC

VIDEO OUTPUTS

HD-SDI, Composite (BNC)

IN / OUT IMPEDANCE

75Ω / Auto Terminating Output

POWER REQUIREMENT

Dual Voltage 24 VDC / 90-240VAC

POWER CONSUMPTION

38.7 Watts (24VDC)

ENCLOSURE

Painted Steel

MOUNTING

VESA Mounting 100x100mm, 100x200mm, 200x200mm (M4 x 6mm Screws)

OPERATING TEMPERATURE

+32° to +122° F (0º to +50º C)

HUMIDITY

10-90% RH

SHOCK

50 G (1/2 sine, 20 msec) +/-X, +/-Y, +/-Z (one time each axis)

VIBRATION

1.0 G RMS (Random Wave, 10-300Hz) 10 minutes each axis (X,Y,Z)

APPROVALS

UL/cUL, FCC, CE, RoHS

DIMENSIONS

30.12” (W) x 18.39” (H) x 3.22” (D) (765 x 467 x 81.7 mm)

WEIGHT

22.4 lbs. (10.16 kg)

WARRANTY

3-Years

Specifications subject to change without notice.
