CZH-IDP215G-S101
    Publish time 2023-05-14 12:42

● Industrial-Grade 21.5″ Monitor

● Full HD Resolution: 1920 x 1080 (1080p/60)


CZH-IDP215G-S101

21.5 Inch Monitor

  • Industrial-Grade 21.5″ Monitor

  • Full HD Resolution: 1920 x 1080 (1080p/60)

  • Video Inputs: VGA, HDMI Composite BNC Loop-Thru

  • Creternal-Tuff  Treatment- Ensures Maximum Shock & Vibration Resistance

  • Auto Re-Start After Power Loss

  • Lockable On-Screen Display Controls

  • Can Be Customized to Meet Your Needs

  • 3-Year Warranty

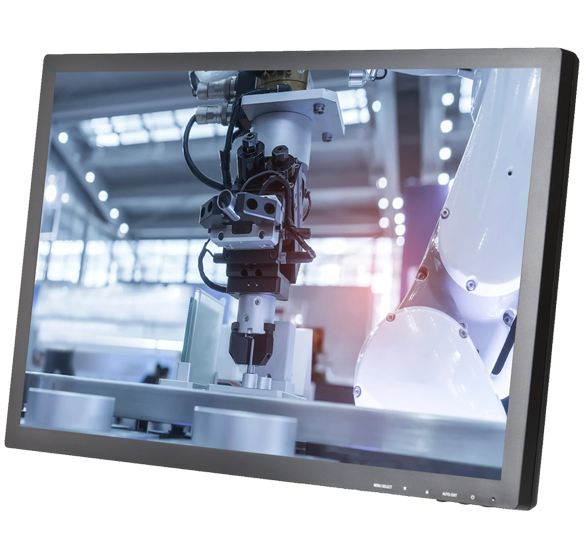

INDUSTRIAL-GRADE 21.5 INCH MONITOR

   The CZH-IDP215G-S101 are 21.5 inch monitors.  These industrial-grade LCD monitors offer brilliant color and superb image quality while providing the reliability and rugged performance required by demanding applications.  They offer full HD resolution: 1920 x 1080 (1080p/60).  It is a 16:9 aspect ratio display series.

MONITORS WITH MAXIMUM RESISTANCE TO SHOCK AND VIBRATION

   The CZH-IDP215G-S101 also features Creternal-Tech’s exclusive Creternal-Tuff treatment, which ensures maximum resistance to shock and vibration. The Creternal-Tuff process includes RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged ABS enclosure, ensures the CZH-IDP215-BP01 will provide years of reliable service.

21 INCH MONITORS DESIGNED FOR 24/7/365 OPERATION

   The CZH-IDP215-BP01 are designed to operate 24/7/365 and are backed by our full 3-Year Warranty. This series of monitors are ideal for industrial, military, food & beverage, machine vision systems, museums, and surveillance applications. View all of our standard brightness industrial monitors for indoor operation.

BEST INDUSTRIAL LCD DISPLAY – WE ARE READY TO HELP YOU WITH YOUR SELECTION

   With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you to filter by your own specific search requirements.  View our full line of 21.5-65″ monitors or filter monitors by standard brightness models only.  Creternal-Tech can provide modified or Custom OEM LCD Displays.  Private Label Monitors are also an option if you have very specific requirements.  We also offer our 21.5″ monitors/ touch screens as Medical Grade Display solutions.

   Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs.  We will help provide crystal-clear images for your projects.  Email fae@creternal-tech.com today to Contact with one of our specialists.  Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 21.5′′ industrial grade monitor you receive will be and do everything you had hoped it would!

If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.

SPECIFICATIONS

LCD PANEL

21.5" Color LCD (MVA Type); LED Backlights

DISPLAY RESOLUTION

1920 x 1080 (1080p/60 Full HD)

VIEWABLE AREA

18.76" x 10.55" (476.6 x 268.1 mm)

PIXEL PITCH

0.248mm

DISPLAY COLORS

16.7 M

ASPECT RATIO

16:9

BRIGHTNESS

250 nits

CONTRAST RATIO

3,000:1

VIEWING ANGLE

178° (H) x 178° (V)

RESPONSE TIME

5 ms Trf

CONTROL

OSD (On-Screen Display) via Pushbuttons

VIDEO INPUTS

VGA, HDMI, Composite BNC Loop-Thru

AUDIO

Standard

POWER REQUIREMENTS

12-24VDC (2.5mm Plug)

POWER CONSUMPTION

25W

ENCLOSURE

ABS

MOUNTING

100x100mm Rear VESA Mount Holes (Base optional) M4 x 12mm Screws)

OPERATING TEMP./HUMIDITY

32° to 122°F (0° to +50°C); 5-90% Non-Condensing

STORAGE TEMPERATURE

-4° to +140°F (-20° to +60°C)

SHOCK

50G, Half-sine Wave, 20ms, X/Y/Z

VIBRATION

Acceleration: 1.5 G RMS; Random Wave; 10-200Hz; 30 mins Per Axis (X, Y, Z)

DIMENSIONS

20.68" W x 12.60" H x 2.18" D (525.3 x 320 x 55.4mm)

WEIGHT

7.4 lbs. (3.4 Kg)

WARRANTY

3-Years

Specifications subject to change without notice.
